Atenxion AI PlatformLearn how our product works
Atenxion Platform

RAG Tool in a Single-Node Agent

Step-by-Step Guide

Step 1: Choose a blank canvas to customize for defining the user's own agent behavior.

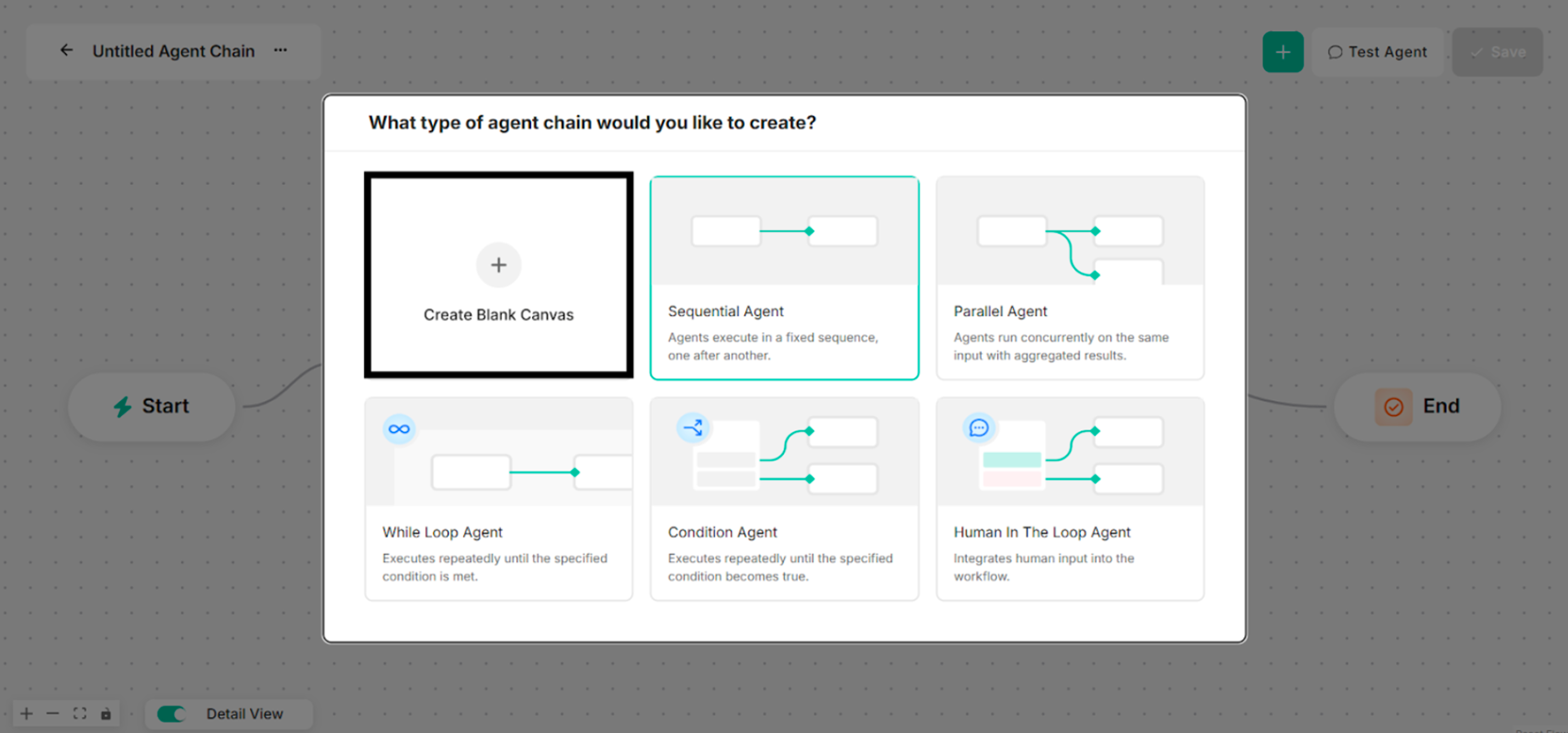

Interface showing Blank Canvas for a Single-Node Agent Creation
Figure: Interface showing Blank Canvas for a Single-Node Agent Creation

Step 2: Choose RAG Tool for the selected type of agent chain to create. The Agent Name and Model Name are renamed before a RAG Tool is chosen.

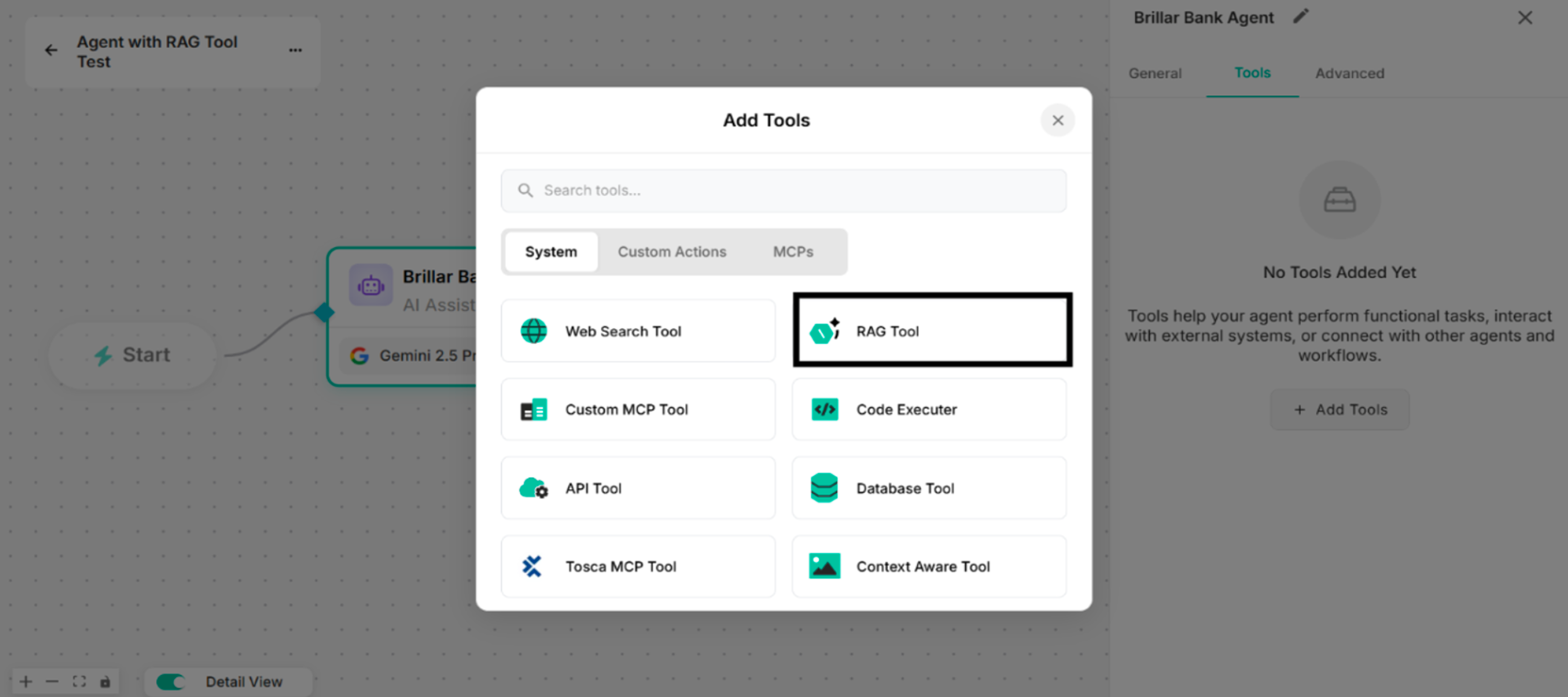

Showing to select RAG Tool in Add Tools List
Figure: Showing to select RAG Tool in Add Tools List

Step 3: By clicking the Manage button, rename the tool name for the Untitled Tool. Select one knowledge base from the created knowledge base list.

Knowledge bases can be created by uploading files from documents, media, cloud drives (Google Drive, Amazon S3 Buckets, OneDrive, SharePoint), crawling websites, and adding questions and answers as long as the Manage Sources button is clicked.

Created Knowledge Bases List from Knowledge Base Section in Setup Tool Interface (Knowledge Base Names with Sources Count)
Figure: Created Knowledge Bases List from Knowledge Base Section in Setup Tool Interface (Knowledge Base Names with Sources Count)

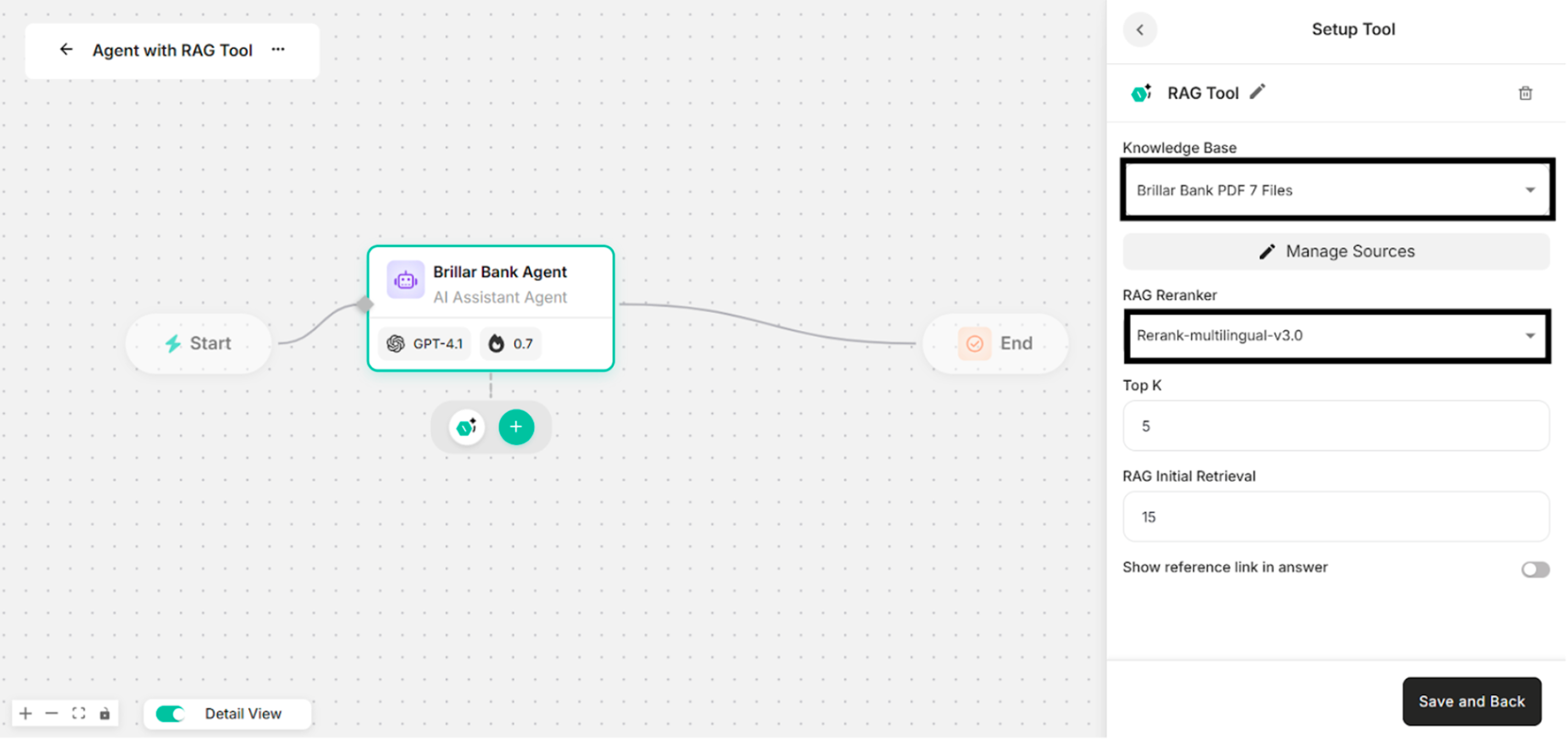

Showing the Selected Knowledge Base and Selected Reranker Model
Figure: Showing the Selected Knowledge Base and Selected Reranker Model

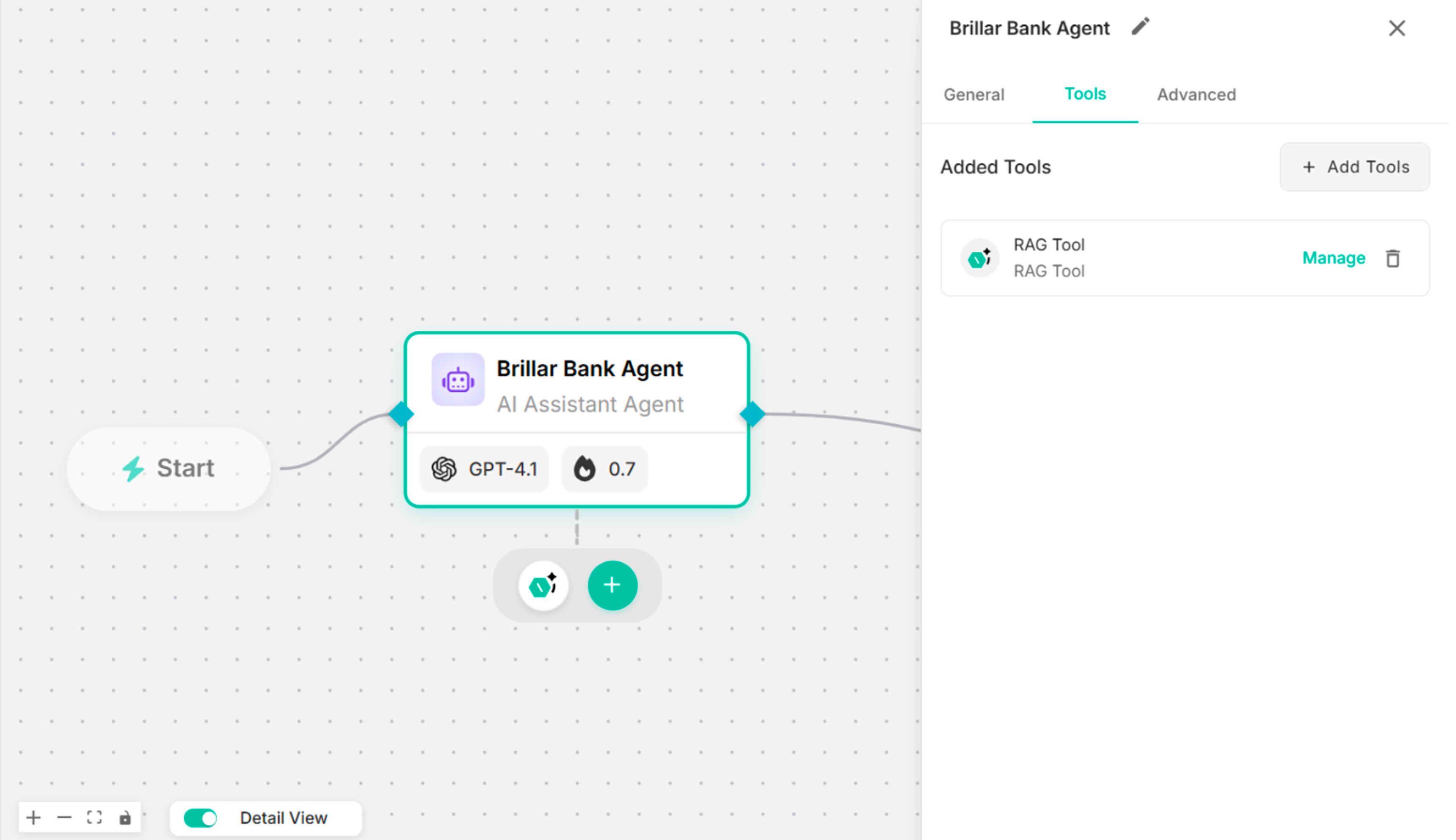

Showing the Canvas with the Created RAG Tool
Figure: Showing the Canvas with the Created RAG Tool
Note: Showing reference link in answer is optional.

Step 4: Enter instruction in the Instruction box to use the created RAG tool.

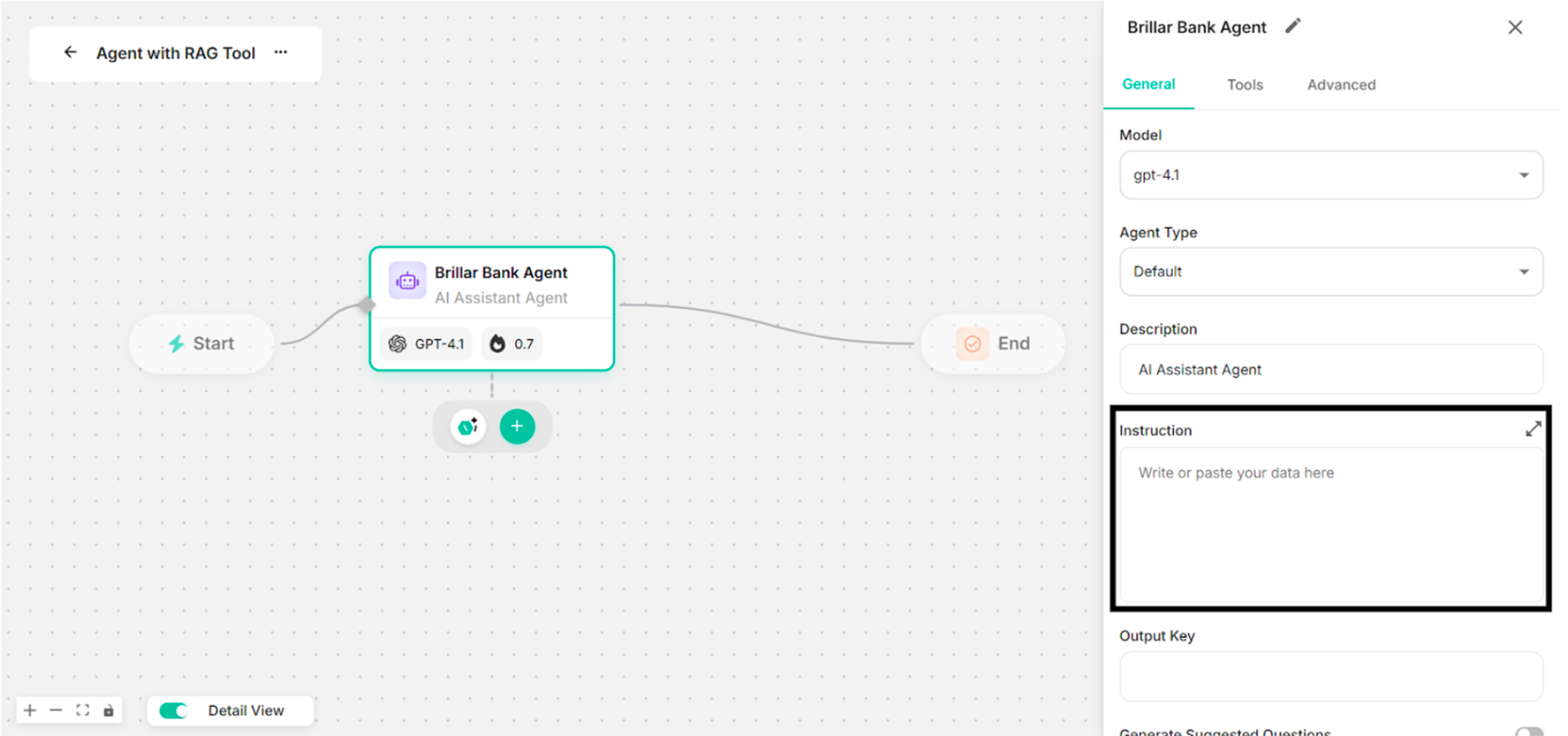

Showing to add Instruction in the Instruction Box
Figure: Showing to add Instruction in the Instruction Box

Step 5: Click Save button with the created RAG tool.

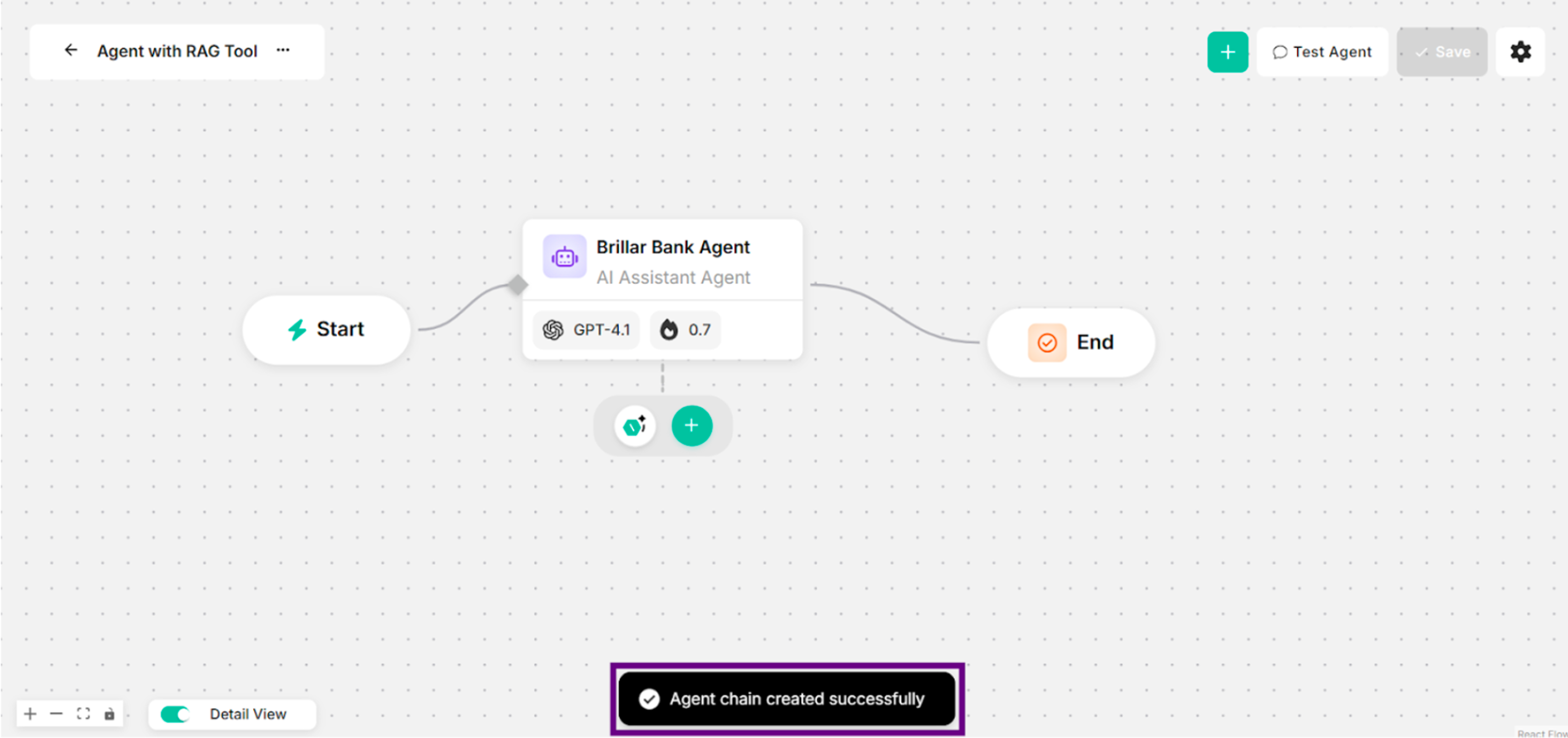

Showing Success Message with RAG Tool for Clicking Save Button
Figure: Showing Success Message with RAG Tool for Clicking Save Button

Step 6: Ask some questions with the successfully created RAG tool.

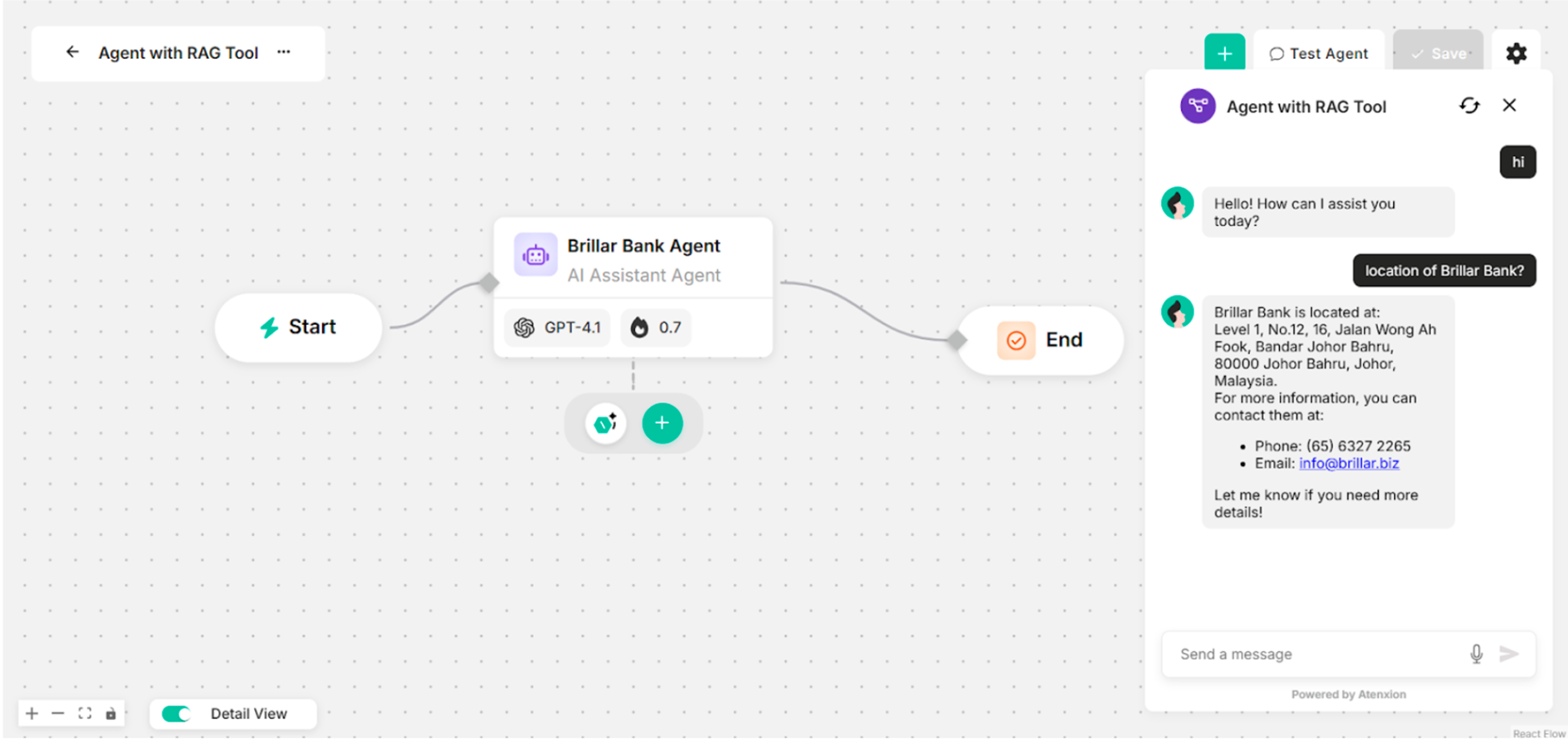

Showing Some Questions and Answers in Canvas (with RAG Tool)
Figure: Showing Some Questions and Answers in Canvas (with RAG Tool)
